13" Double Miter Cutting Band Saw - Semi-Auto UE-331DSA

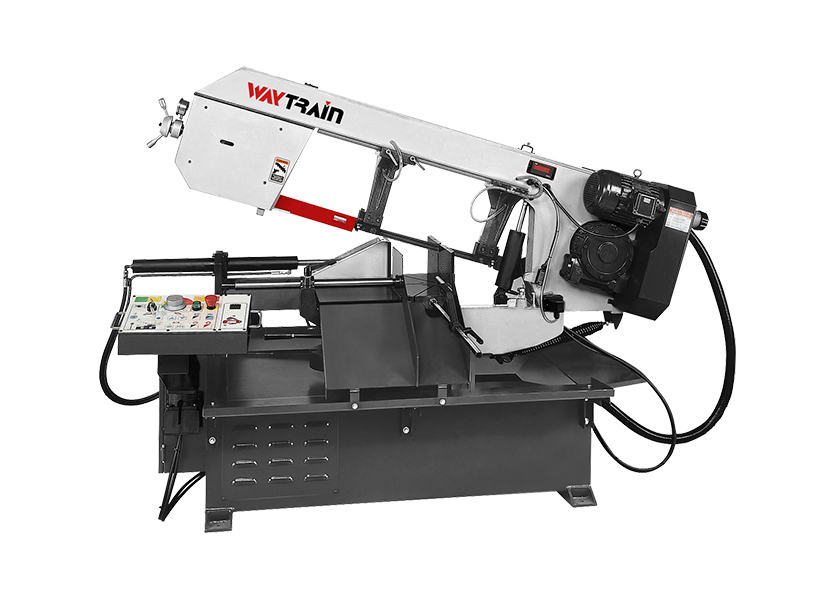

UE-331DSA 13” Double Miter Cutting Band Saw – Semi-Automatic

The UE-331DSA Semi-Automatic Band Saw is a high-precision metal cutting solution designed for industrial applications. With a double miter cutting capability (R/L 60°), variable blade speeds, and user-friendly controls, this machine is ideal for fabricators, machine shops, and metalworking professionals who require clean, accurate cuts on tubes, pipes, solid bars, and structural steel.

Key Features of the UE-331DSA Double Miter Bandsaw:

✅ Swiveling Saw Bow: Achieve precise miter cuts at 60° left and right, controlled manually.
✅ Variable Blade Speeds: Adjustable manually for optimized cutting performance across different materials.
✅ Blade Speed Readout: Displays real-time blade speed, ensuring accurate adjustments.
✅ Blade Tension Gauge: Maintains consistent blade tension for enhanced cutting accuracy and extended blade life.
✅ Control Panel Functions: Includes bow height setting, abnormal warning lights, and swiveling control box for ease of use.
✅ Blade Wheel-Driven Chip Brush: Keeps the blade free from debris for smooth operation.
✅ Optional Features for Enhanced Performance:

• Angle Readout for precise adjustments
• Vertical Press Vise for secure material clamping
• Laser Cutting Line Device for increased accuracy

Cutting Capacities:

At 90° (H x W):

• Round: 331 mm
• Square: 320 x 485 mm
• Rectangular: 260 x 510 mm

At 45° (Right & Left) (H x W):

• Round: 315 mm
• Square: 315 x 315 mm

At 60° (Right & Left) (H x W):

• Round: 215 mm
• Rectangular: 315 x 195 mm

Blade & Motor Specifications:

• Blade Size: 34 x 1.1 x 4180 mm
• Blade Motor: 3 HP (2.2 kW) x 4P
• Blade Speed:
  • 50Hz: 26 – 80 m/min
  • 60Hz: 32 – 96 m/min

Hydraulic & Coolant System:

• Hydraulic Tank Capacity: 17 L
• Coolant Tank Capacity: 50 L

Machine Dimensions & Weight:

• Packing Size: 2310 x 1060 x 1550 mm
• Net Weight: 850 kg
• Gross Weight: 965 kg

Why Choose the UE-331DSA Semi-Automatic Bandsaw?

✔ Versatile Miter Cutting – Cut at multiple angles (Left & Right 60°) for greater flexibility.
✔ Industrial-Grade Performance – Powerful 3 HP motor and adjustable blade speeds for efficient metal cutting.
✔ User-Friendly Design – Control panel with height adjustment, warning lights, and swiveling box.
✔ Precision Cutting Options – Add-on features like laser cutting line device and vertical press vise for increased accuracy.

Order the UE-331DSA Double Miter Bandsaw Today!

Enhance your metal fabrication capabilities with the UE-331DSA Semi-Automatic Band Saw. Contact us for pricing, availability, and shipping details!
