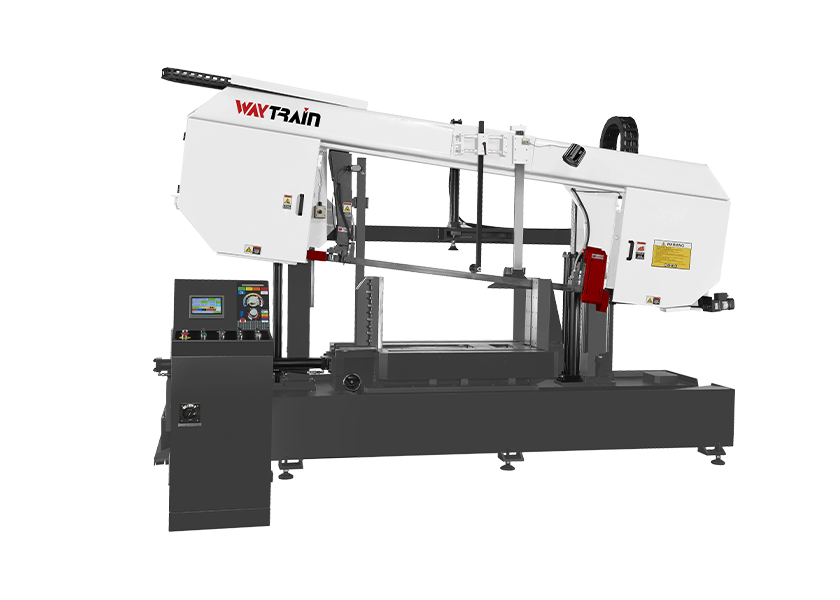

25" Heavy Duty Horizontal Band Saw Machine - Semi-Auto RL-650A
25" Heavy Duty Horizontal Band Saw Machine - Semi-Auto | RL-650A
The RL-650A is a powerful semi-automatic horizontal band saw built for heavy-duty industrial cutting. With a massive 25-inch cutting capacity and precision-engineered components, this machine ensures smooth and efficient operation. The 6.5˚ blade tilt allows for effortless cutting of steel plates and section steel, while the inverter-controlled blade speed provides flexibility for various materials.
Key Features:
✔ Heavy-Duty Cutting Capacity: Handles materials up to 650 x 1100 mm with ease.
✔ Blade Tilt (6.5˚): Optimized for cutting steel plates and structural steel with minimal resistance.
✔ Inverter-Controlled Blade Speed: Adjustable 30-110 m/min for maximum cutting efficiency.
✔ Smart Diagnostics: On-screen notifications for real-time malfunction detection and troubleshooting.
✔ Hydraulic Blade Tensioning: Ensures consistent blade performance and extended blade life.
✔ Automatic Blade Guide Arm Adjustment: Provides superior stability and cutting accuracy.
✔ Noise Reduction System: Reduces cutting noise for a smoother operation.
✔ Hydraulic Carbide Blade Guides: Enhances cutting precision and blade longevity.
✔ Motor-Driven Chip Brush: Keeps the blade clean for improved performance.
✔ Optional Features: Vise pressure regulator and hydraulic vertical press vise for enhanced material clamping.
Specifications:
🔹 Cutting Capacity:
- Maximum Workpiece Size: 650 x 1100 mm
🔹 Blade Details:
- Size: 54 x 1.6 x 8700 mm
- Speed: 30 ~ 110 m/min
🔹 Motor Power:
- Blade Motor: 10 HP (7.5 kW)
- Hydraulic Motor: 3 HP (2.25 kW)
- Coolant Pump: 1/4 HP (0.19 kW)
- Brush Motor: 60 W
🔹 Tank Capacities:
- Hydraulic Tank: 80 L
- Coolant Tank: 180 L
🔹 Machine Dimensions:
- Packing Size: 4550 x 2270 x 2560 mm
- Table Height: 830 mm
- Weight (N.W/G.W): 4300 kg
The RL-650A is designed for maximum durability, precision, and efficiency, making it the ideal solution for industrial cutting applications. Contact us today to learn more!
