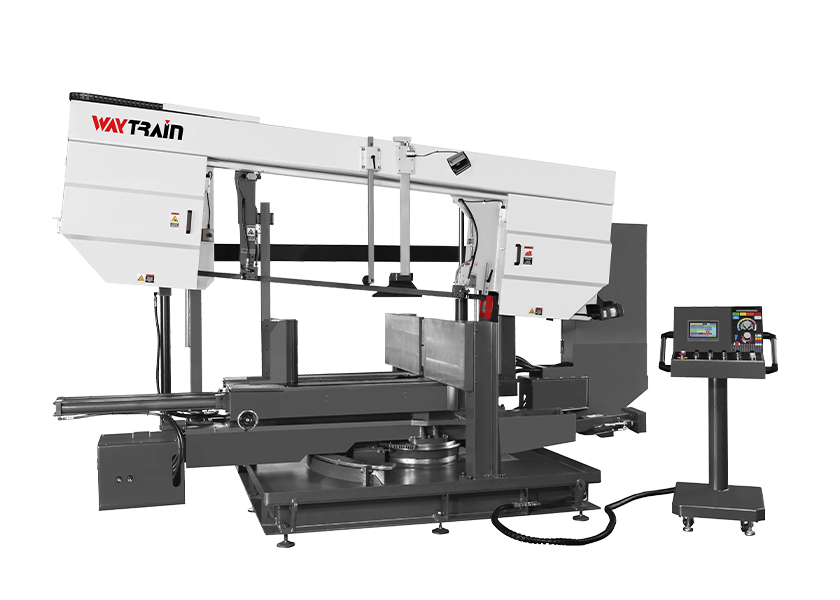

22" Double Miter Cutting Band Saw - Semi-Auto RL-560DSA
22" Double Miter Cutting Band Saw - Semi-Auto | RL-560DSA
The RL-560DSA is a high-performance semi-automatic double miter cutting band saw designed for precision and efficiency. Built for heavy-duty cutting applications, it features auto-swiveling with servo motor control, allowing users to set angles from 45˚ right to 60˚ left directly on the touchscreen. The hydraulic brake positioning system ensures precise angle adjustments for optimal cutting results.
Key Features:
✔ Automatic Angle Adjustment: Set cutting angles (R/L 45˚, L 60˚) on-screen with automatic swiveling for seamless operation.
✔ Servo Motor & Hydraulic Brake: Ensures smooth and accurate angle positioning.
✔ Blade Tilt (6.5˚): Designed for effortless cutting of steel plates and section steel, reducing blade stress.
✔ Inverter-Controlled Blade Speed: Adjustable blade speed (30-110 m/min) for optimal cutting efficiency.
✔ Smart Diagnostics: On-screen notifications for quick malfunction detection and troubleshooting.
✔ Hydraulic Blade Tensioning: Maintains consistent tension for precision cutting and extended blade life.
✔ Automatic Blade Guide Arm Adjustment: Enhances stability and accuracy during cutting.
✔ Noise Reduction System: Reduces cutting noise for a smoother operation.
✔ Hydraulic Carbide Guides: Provides superior blade guidance and support.
✔ Efficient Chip Removal: Motor-driven chip brush keeps the blade clean.
✔ Optional Upgrades: Vise pressure regulator and hydraulic vertical press vise for enhanced clamping control.
Specifications:
🔹 Cutting Capacity:
- 90°: 560 x 950 mm
- 45° (R/L): 560 x 600 mm
- 60° (L): 560 x 400 mm
🔹 Motor Power:
- Blade Motor: 7.5 HP (5.7 kW)
- Hydraulic Motor: 2 HP (1.5 kW)
- Coolant Pump: 1/4 HP (0.19 kW)
🔹 Blade Details:
- Size: 41 x 1.3 x 7880 mm
- Speed: 30 ~ 110 m/min
🔹 Tank Capacities:
- Hydraulic Tank: 75 L
- Coolant Tank: 155 L
🔹 Machine Dimensions:
- Packing Size: 4250 x 2100 x 2100 mm
- Table Height: 830 mm
- Weight (N.W/G.W): 4500 kg
The RL-560DSA is the perfect choice for industrial users who require precision, efficiency, and automation in their cutting processes. Contact us today to learn more!
