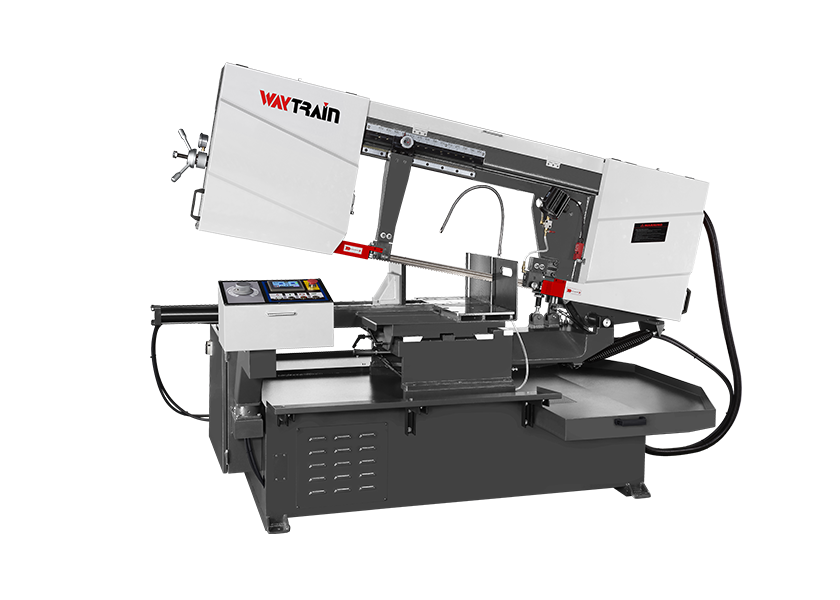

Double Miter Cutting Band Saw - Semi-Automatic | Model UE-460DSAG

The UE-460DSAG Double Miter Cutting Band Saw is a semi-automatic, high-precision industrial saw designed for heavy-duty metal cutting. Engineered for efficiency and flexibility, this band saw allows for angle cutting (miter cutting) up to 60° in both directions (left and right), making it ideal for fabrication shops, metalworking industries, and large-scale manufacturing operations.

Key Features:

✅ Double Miter Cutting (Left/Right 60°) – The saw bow can swivel up to 60° both left and right, allowing for precise angle cuts without repositioning your material.
✅ Sliding Vise Base for Quick Angle Adjustments – Easily slide the vise base to align your material for angle cuts, saving time and increasing productivity.
✅ Manual Variable Blade Speed – Adjust the blade speed manually between 32 to 96 meters per minute (mpm) to match different material types and thicknesses.
✅ HMI Control Panel with Advanced Assistance – The user-friendly Human-Machine Interface (HMI) offers advanced operation assistance, 10 different built-in error conditions, and on-screen troubleshooting guidance.
✅ Linear Guide Blade Post Movement – Equipped with a linear guide system for the blade guide post, ensuring accurate and smooth movement for clean and precise cuts.
✅ Adjustable Tension Spring for Frame Pressure Control – The saw frame uses an adjustable tension spring to balance pressure, extending the blade life and improving cutting quality.
✅ Manual Bow Height Adjustment – Set the saw bow height manually for different material thicknesses.
✅ Blade Tension Gauge – Monitor the blade tension accurately, ensuring optimal cutting performance and blade longevity.
✅ Swiveling Control Box – The control panel swivels with the saw head, allowing easy operation from any angle.

Optional Features:

• Vise Pressure Regulator – Control the clamping pressure on your material to avoid damage.
• Hydraulic Blade Tension – Automatically maintain the ideal blade tension, increasing cutting accuracy and extending blade life.
• Hydraulic Vertical Press Vise – Enhance material stability for vertical cuts, reducing vibration and improving cutting precision.

Technical Specifications:

• Cutting Capacity at 90°:
  • Round Material: 460mm diameter
  • Square Material: 460mm x 460mm
  • Rectangle Material: 440mm x 600mm
• Cutting Capacity at 45° (Left/Right):
  • Round Material: 445mm diameter
  • Square Material: 400mm x 400mm
  • Rectangle Material: 460mm x 400mm
• Cutting Capacity at 60° (Left/Right):
  • Round Material: 295mm diameter
  • Square Material: 295mm x 295mm
  • Rectangle Material: 460mm x 250mm
• Blade Motor: 5 HP (3.7 kW) x 4P
• Hydraulic Motor: 1 HP (0.75 kW)
• Blade Size: 41mm x 1.3mm x 5600mm
• Blade Speed: 32 ~ 96 m/min (variable speed)
• Hydraulic Tank Capacity: 30 L
• Coolant Tank Capacity: 75 L
• Packing Size: 2920mm x 1135mm x 1900mm
• Net Weight/Gross Weight: 1460 Kg / 1590 Kg

Why Choose the UE-460DSAG Semi-Automatic Band Saw?

The UE-460DSAG Semi-Automatic Double Miter Band Saw is built for high-capacity, precision metal cutting. Its double miter angle adjustment (up to 60° left and right), HMI control panel, and variable blade speed make it the ideal choice for structural steel fabrication, tube cutting, and large-scale industrial metal cutting operations.

The advanced linear guide blade post system and adjustable tension spring ensure smooth, precise, and consistent cutting performance, while the optional hydraulic blade tension and vertical press vise offer superior cutting stability.

Order Your UE-460DSAG Double Miter Cutting Band Saw Today!

Looking for a high-capacity industrial band saw with double miter cutting capability? Contact us today to request a quote or learn more about the UE-460DSAG Semi-Automatic Metal Cutting Band Saw.
